5-axis simultaneous machining, CNC lathes up to 4m, boring machines up to 5m and unlimited weight capacity for large industrial parts.
Maximum part size that can be accommodated on each machine, measured in millimeters
Work surface dimensions to ensure proper part fitting and secure positioning during machining
Heaviest part weight the machine can safely handle while maintaining precision control
Multiple axis capabilities for complex geometries and precise manufacturing requirements
| Machine Name | X, Y, Z (mm) | Table (mm) | Max. Weight (kg) |
|---|---|---|---|

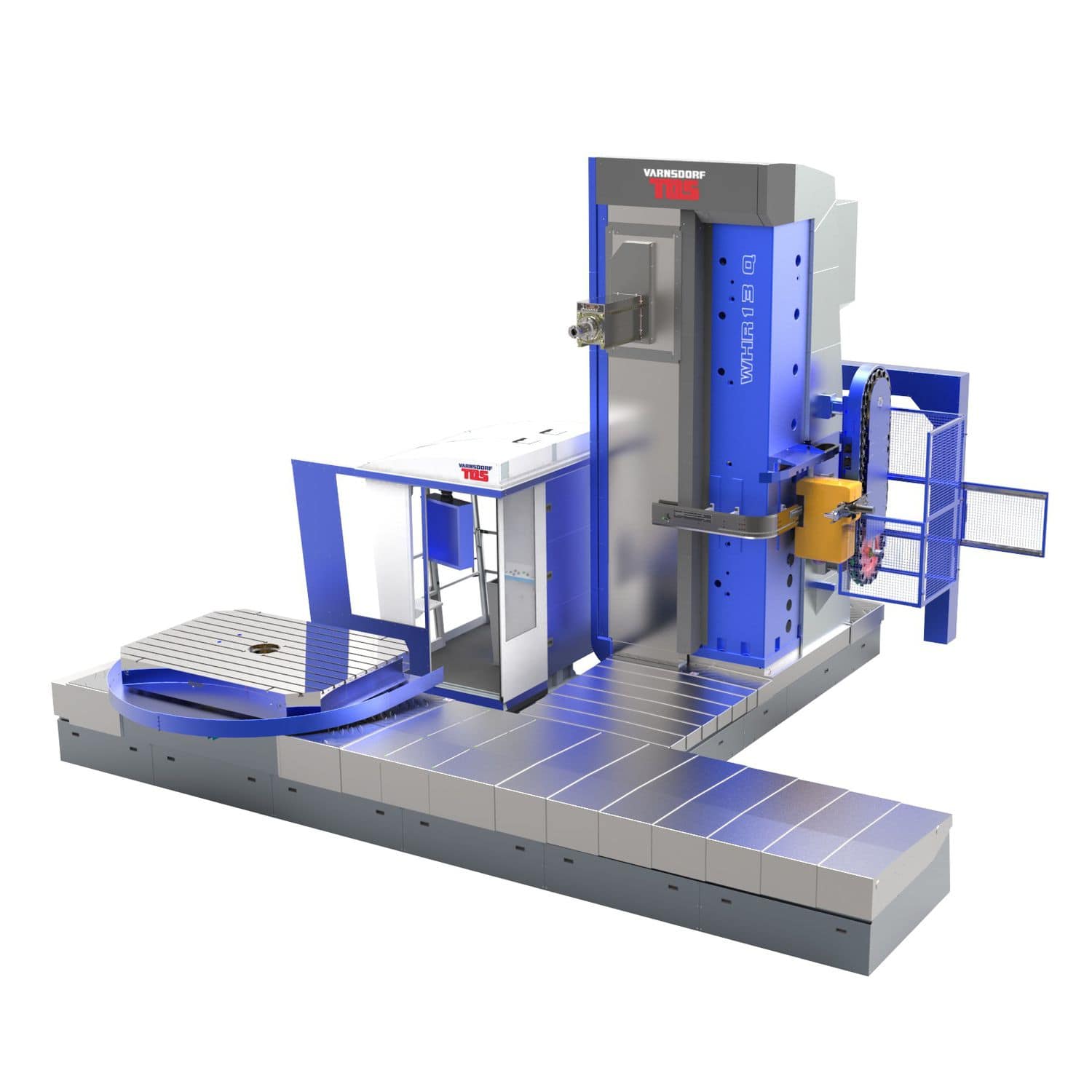

| CNC TOS / 3+2 | 5000, 2500, 1600 | 2500 x 1800 | 12000 |
| CNC TOS / 3+2 | 3500, 2500, 1250 | 2500 x 1800 | 12000 |
| CNC TOS / 3+2 | 2000, 2000, 1000 | 1400 x 1600 | 5000 |
| CNC TOS / 3+2 | 2000, 2000, 1000 | 1400 x 1600 | 5000 |

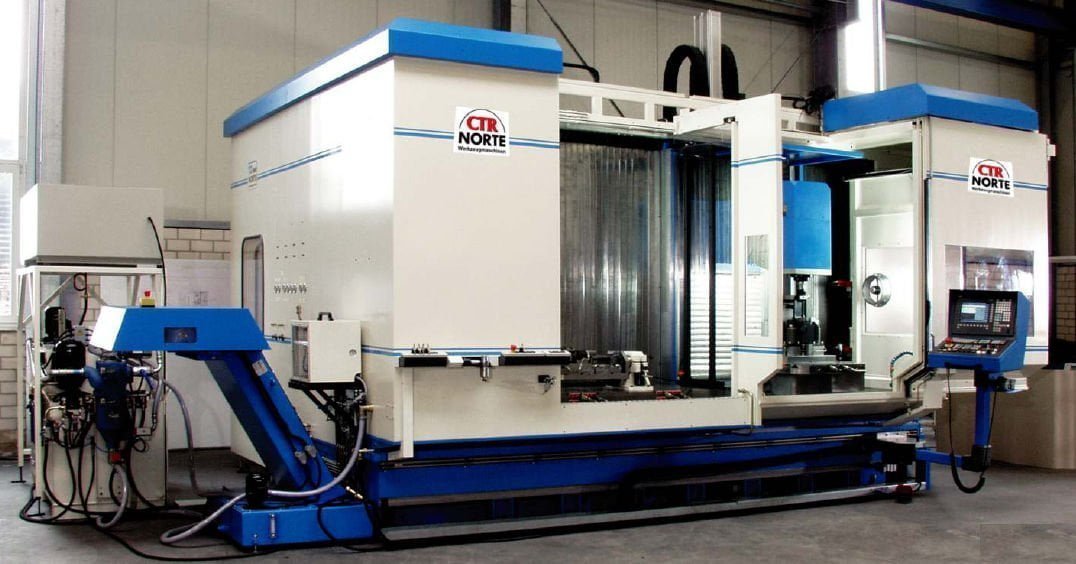

| CNC Norte | 2000, 630, 800 | 2100 x 700 | Unlimited |
| CNC PBR | 2000, 1500, 1200 | 1200 x 1000 | 3000 |

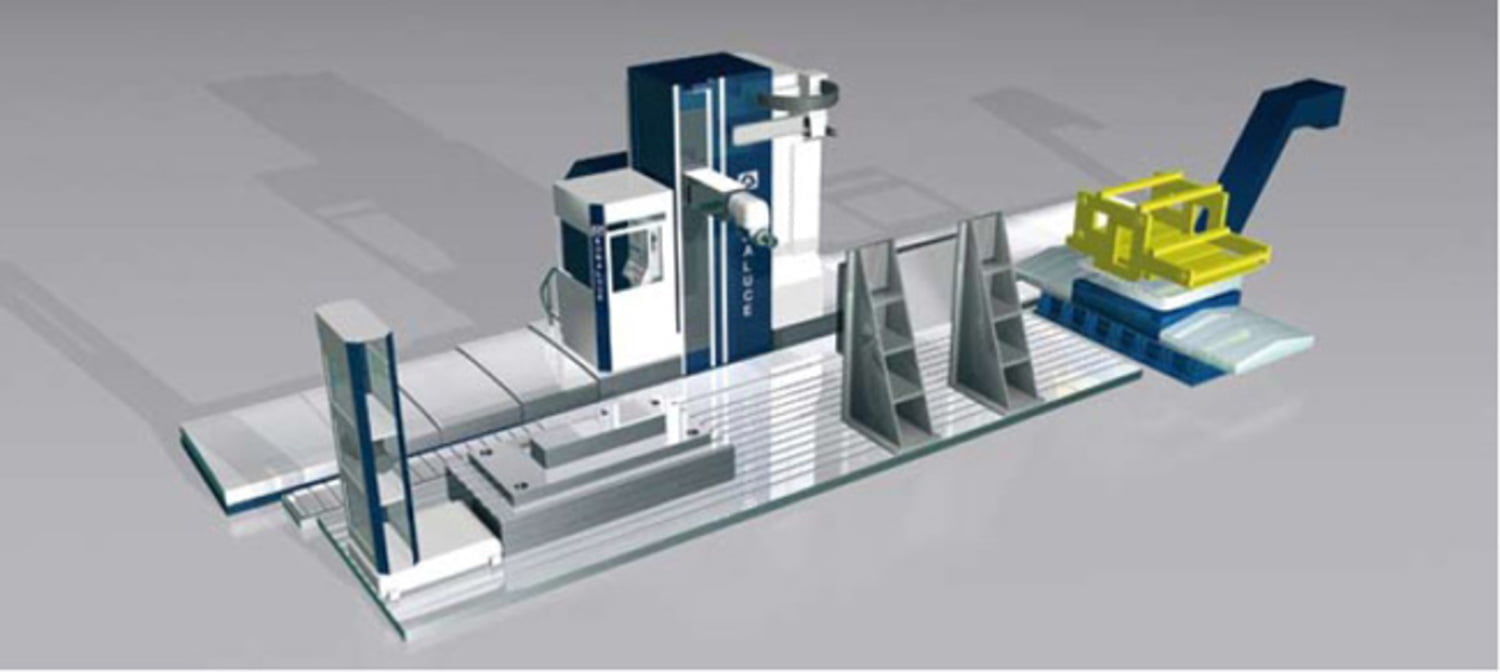

| CNC Soraluce 3+2 | 3500, 1600, 1600 | 4000 x 900 | Unlimited |
| CNC Hermle | 800, 600, 500 | 1000 x 450 | 800 |

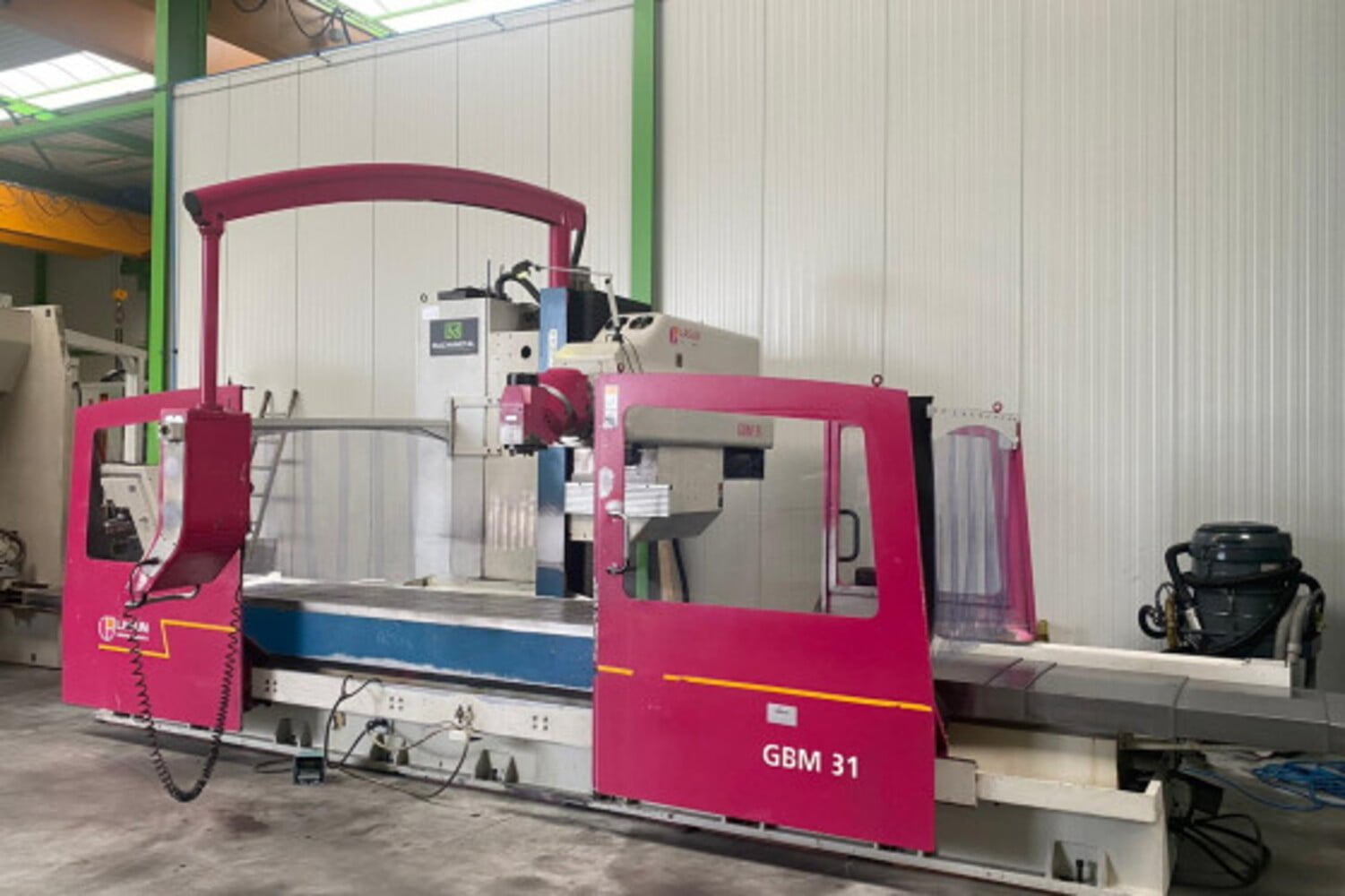

| CNC Lagun 3+2 | 1800, 900, 800 | 2000 x 1000 | Unlimited |
| Machine Name | X, Y, Z (mm) | Table (mm) | Max. Weight (kg) |
|---|---|---|---|

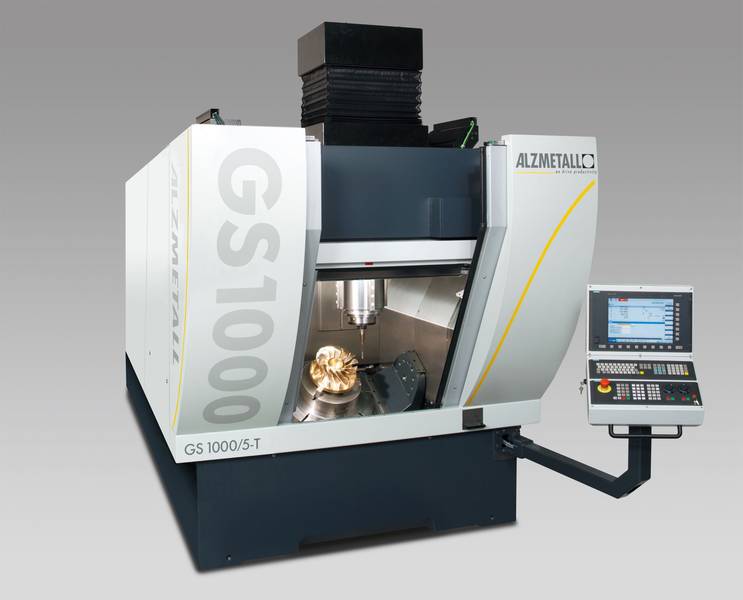

| Alzmetall GS 1000/5-t | 800, 800, 600 *Diameters up to 1000mm |
630 | 1000 |
| Machine Name | Diameter (mm) | Length (mm) | Max. Weight (kg) |
|---|---|---|---|

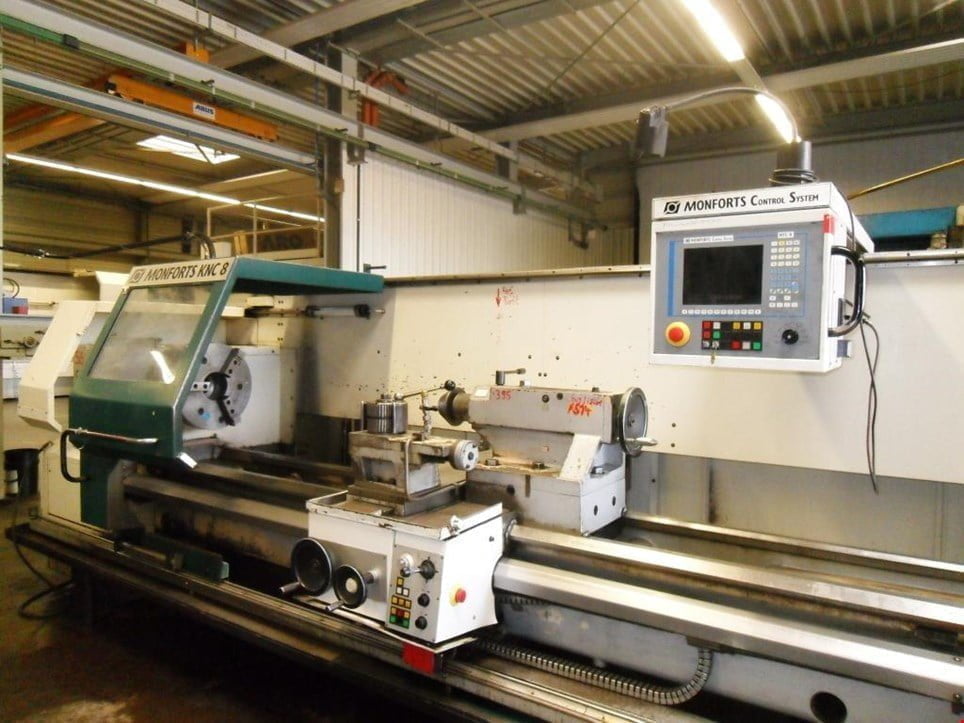

| CNC Monforts 10S | 1100 | 4000 | 5000 |
| CNC Monforts 9S | 870 | 2100 | 3000 |
| CNC Schiess Karussell | 2000 | 1800 | 16000 |
| CNC WMSH | 500 | 1000 | 2500 |
| Ravensburg | 2500 | 1000 | 3000 |
| Potisje | 1000 | 2300 | 5000 |
High-precision 3+2 axis milling machine
Large-scale 3+2 axis machining center
Multi-axis precision machining
Unlimited weight capacity milling machine
3+2 axis machining with unlimited capacity
High-precision turning machine

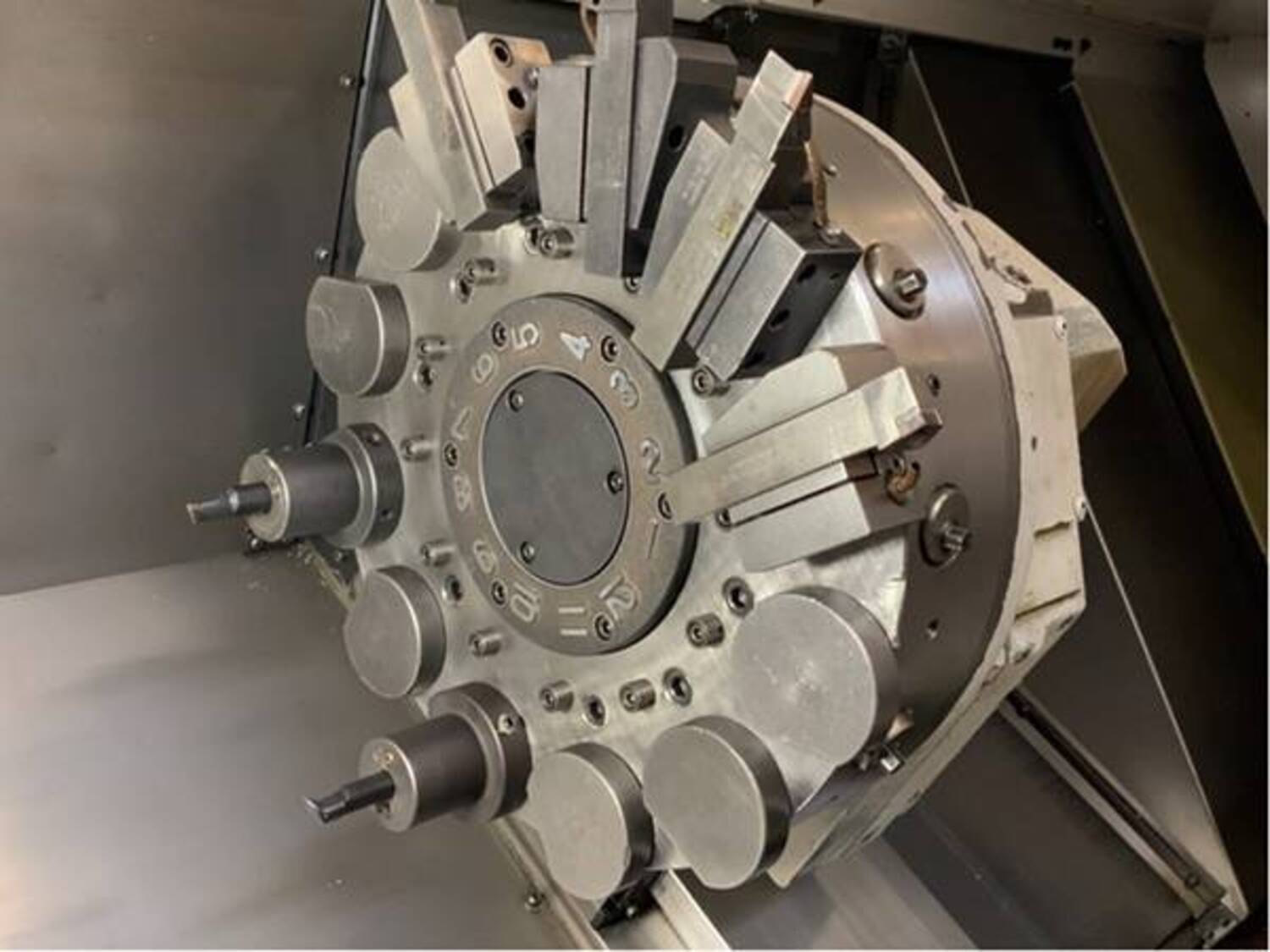

WMSH lathe with revolver tooling
Heavy-duty turning center
Parts up to 5000mm x 2500mm x 1600mm with weights up to 16,000kg
High-accuracy 5-axis simultaneous machining for complex geometries
CNC lathes handling diameters up to 2500mm and lengths up to 4000mm
Multiple machines with 3+2 axis capabilities for versatile production
Several machines with unlimited weight capacity for largest projects
Wide range of machines for both prototype and large-scale production
From precision aerospace components to heavy-duty mining equipment — our machine park covers the full spectrum.
Our state-of-the-art machinery and experienced team are ready to tackle your most challenging projects
